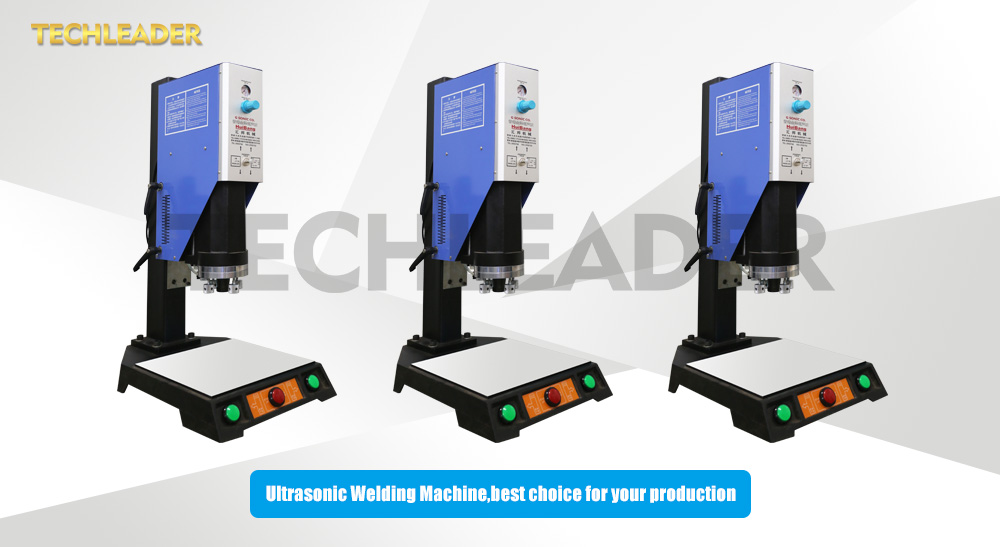

Semi-Automatic Ultrasonic Welding Machine For Plastic With Good Price From China Welder Machine Manufacturer

Product Function:

1. High stability: All digital integrated circuits adopt imported high-performance anti-interference processor, which reduces the number of components and simplifies the hardware structure, thus improving the reliability of the system.

2. Frequency automatic tracking: Digital frequency synthesis technology combined with digital phase-locked loop frequency tracking composite control technology can eliminate the disadvantages of temperature, static load, processing area, tool wear and other factors that are difficult to overcome by conventional analog regulators, which is beneficial to parameter adjustment. It is convenient to modify the control scheme and implement various new control strategies through the modification of the program software.

3. Strong output: The application of IGBT power module plus his exciting oscillating circuit structure makes the output power more than 1.6 times that of the traditional self-excited circuit.

4. Intelligent three-item protection and fault alarm prompt: mold current is too high protection, frequency offset protection, total output is too large protection. If the equipment fails, the generator will stop working immediately and prompt the corresponding fault cause until the technician removes the fault.

5. The amplitude adjustment of the intelligent closed loop amplitude control technology achieves a constant amplitude output independent of fluctuations in the input supply voltage and load.
7. Amplitude and non-polar adjustment: The amplitude can be increased or decreased instantaneously during the adjustment process, and it can also be fine-tuned to effectively prevent the size of the rubber parts from being perfectly welded, effectively reducing the penetration and burns. The setting range of defective product is 10%~100%
8. Automatic frequency chasing: intelligent frequency control system, eliminating the inconvenience of manual frequency modulation, automatic detection of ultrasonic overload, automatically adjusting to the optimal frequency band, tracking the best resonance point, realizing stable operation of the machine, and keeping the vibration group temperature at its lowest point. The frequency of the welding head rises as the frequency changes, and the machine automatically adjusts.

9.Mold current is too high protection, frequency offset protection, total output is too large protection. For the protection of the machine, the welding precision is higher and finer.
The operation is simpler, the welding head is replaced, the welding head is fixed and the power is restarted, and the device automatically detects the frequency of tracking the new welding head. Abnormal automatic shutdown, reducing product defect rate and preventing machine damage.
Energy can be set on the lower line to set an alarm to reduce the defect rate.

Product Specification:

Model YP-2020M
Voltage 220V
Frequency 20KHz
Welding area(mm) 110 m/m φ
Head trip 100mm
Dimensions(L*W*H)mm 650X420X1300 mm
Net weight 120 kg

Product Features:

1.Automatic tuning system, with last cycle memory closed loop feedback of frequency allows faster ,more efficient ultrasonic stack start-up

2. Automatic detect faults and display

3. The accuracy of time control up to 0.001 seconds

4. Multi weld modes optional:

– Time mode

– Energy mode (optional)

– Distance mode(optional)

– Continuous mode(optional)

– Auto. Mode (optional)

5. Through internal signal output can be directly connected with the automatic mechanical system

6. The original imported Germany (PINOT) amplitude automatic constant circuit board, vibration board

7.Full Imported Configuration of the machine :original Germany(PINOT)transducer, solenoid

valve(Germany  FESTO) ,pressure gauge (FESTO),Process Control(OMRON),Filter(Japan SMC),PLC(Japan  PANASONIC),human-machine interface(Taiwan Weinview)

8. Password Protection.Limits parameter access to qualified personnel only.

9.Touch screen ,more convenience

10. Chinese and English language optional

11. CE Approved

12. ODM or OEM is OK.
